Home > Emergency series > auto hematology analyzer

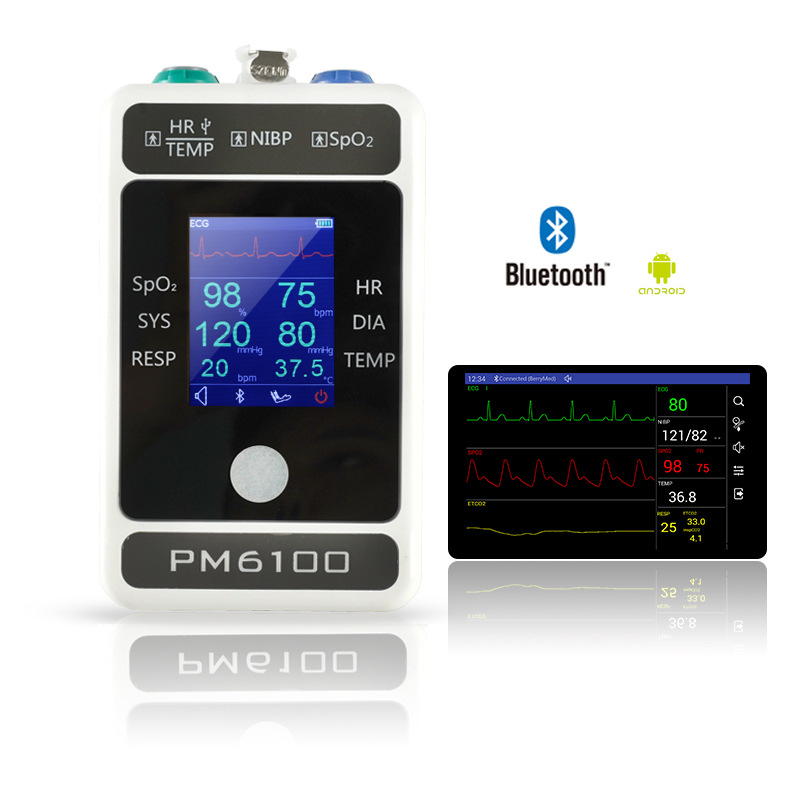

Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment
Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment
  • Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment
  • Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment
  • Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment

Portable Medical Device Multi-parameter Monitor Medical Clinic Equipment

Item No.: 00387
Dimension：145mm*85mm*37mm
Net weight：240g
Display screen ：2.4-inch color TFT screen
Temperature range（Work time）： -10℃ - +40℃
Temperature range（Transportation and storage）：-25℃ - +85℃
Request Quote PDF Format
Description
Description

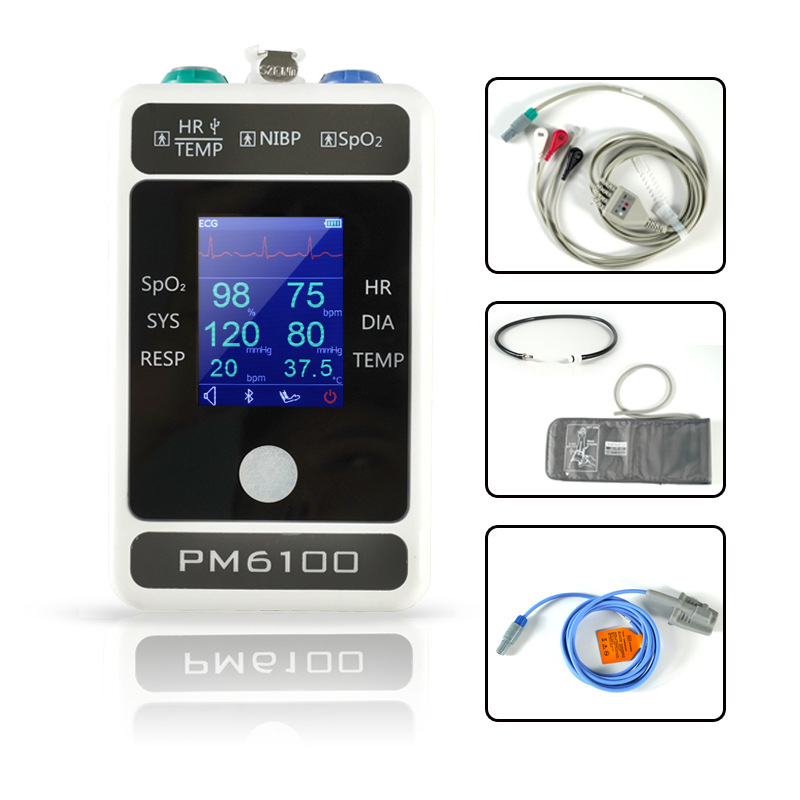

Multi-parameter ECG monitor configuration list

No.

Name

Number

1

Main machine

1

2

Repeatable SpO2 Sensor-Adult Finger Clip

1

3

Electrocardiographic leadwire + body temperature probe

1

4

Blood Pressure Tube + Blood Pressure Cuff

1

5

Charging Power Cord

1

6

User manuals

1

7

Test report

1

8

Certificate of conformity

1

9

Portable Handheld Black Box

1

Model

AS100C

Dimension

145mm*85mm*37mm

Net weight

240g

Display screen

2.4-inch color TFT screen

Temperature range（Work time）

 -10℃ - +40℃

Temperature range（Transportation and storage）

-25℃ - +85℃

Relative humidity（Work time）

 30% - 85%

Relative humidity（Transportation and storage）

30% - 95%

Atmospheric pressure range（Work time）

 86kPa – 106kPa

Atmospheric pressure range（Transportation and storage）

50kPa – 106kPa

Six-parameter function of monitoring

Three-lead ECG waveform (250SPS), four-stage programmed gain, three-stage filtering mode (diagnostic mode, monitoring mode, surgical mode ), heart rate range 25～250BPM.

Respiratory rate range

5～150BPM。

Temperature Measurement Range,Display Accuracy,Measurement Accuracy

 20～50℃,0.1℃,0.2℃

Blood oxygen display range, accuracy

35%～100%, 2%（80%-100%），3%（70%-79%）

Pulse rate range, resolution, accuracy

25～250,1bpm,1%or 2bpm take the upper value

Step deflation blood pressure measurement, systolic range

60～250

Diastolic blood pressure range

30～180

Built-in battery (non-removable)

3.7V， 1800mAh Lithium-ion rechargeable battery

Inputs

AC 100-240V ~ 200mA

Output

DC 5V 1A

Bluetooth

Dual-mode Bluetooth, supports both Bluetooth 3.0 and Bluetooth 4.0

Bluetooth transmission without obstacle distance

20m
