Model |

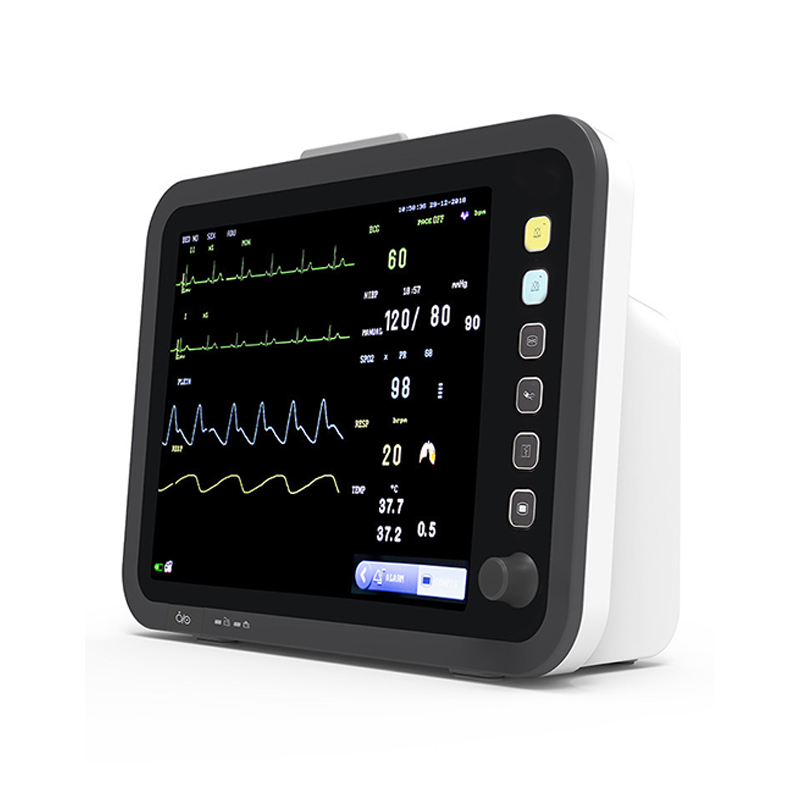

AS100C |
|
Application Range |
Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU |
|
Display |
12.1”real color TFT screen |
|
Operating environment : Temperature |
0℃ - 40℃ |
|
Humidity |
15%~80% |
|
Pressure |
86.0 kPa~106.0kPa |
|
Transport and Storage environment Temperature |
-20℃ - 55℃ |
|
Humidity |
10%~90% |
|
Pressure |
86.0kPa~106.0kPa |
|
Power Requirements |
AC:100~240V50Hz/60Hz DC: Built-in rechargeable battery |
|
Battery |
11.1V 24wh Li-ion battery 2h operating after full charge 5min operating after low battery alarm |
|
Dimension and Weight Equipment |
340mm x245mm x134 mm(about); 2.798kg(about) |
|
Package |
380mm x350 mm x300mm;4.598 kg(about) |
|
Date Storage Trend diagram/table |
720h |
|
NIBP review |
10000 events |
|
Wave review |
12h |
|
Alarm review |
200 alarm events |
|
5 Leads |
RA,LA,LL,RL,V |
|
Lead mode |
I,I,I,AVR,AVL,AVF,V |
|
Gain |
x1.25mm/mV,2.5mm/mV.5.0mm/mV 10mm/mV,20mm/mV (error s 5%) |
|
Sweep speed |
6.25mm/s,12.5mm/s,25mm/s,50mm/s (error s+10%) |
|
Bandwidth |
Surgery 1~ 25 Hz |
|
Monitor |
0.5~40Hz |
|
Diagnostic |
0.05~130Hz |
|
Sensitivity |
>200 V P-P |
|
CMRR |
≥112dB |
|
Differential Input Impedance |
>5M |
|
ohm Electrode Offset Potential |
±300mV |
|
Input Impedance |
≥5M |
|
Calibration Voltage |
1mV±5% |
